Developer Guide¶

As an Extralit developer, you are already part of the community, and your contribution is valuable to our development. This guide will help you set up your development environment and start contributing.

Extralit core components

Mkdocs Documentation: Extralit's documentation serves as an invaluable resource, providing a comprehensive and in-depth guide for both annotators and project admins to explore, understand, and effectively use the core components of the Extralit ecosystem.
Vue.js Web UI: A web application to visualize, extract and validate your data, users, and teams. It is built with Vue.js and Nuxt.js and is directly deployed alongside the Extralit Server within our Extralit Docker image.
Python SDK: A Python SDK installable with pip install extralit to interact with the Extralit Server and the Extralit UI. It provides an API as well as a CLI to manage the data, configuration, and extraction workflows.
FastAPI Server: The core of Extralit's back-end is a Python FastAPI server that manages the document extraction and data annotation lifecycle, as well as serving the Nuxt-built Web UI. It does so by interfacing with the relational database, text-search/vector database, file blob storage, and redis. It provides an REST API that interacts with the data from the Python SDK and the Extralit UI. It also provides a web interface to visualize the data.
Relational Database: A relational database to store the data of the records, workspaces, and users. PostgreSQL is the preferred database option for persistent deployments, otherwise sqlite can also be used for certain local development scenarios, such as testing or lightweight, single-user setups.
File Blob Storage: A file storage system to store the documents and files associated with the records. It can be a local file system or a cloud-based storage solution like Minio or Amazon S3. For local development, we use a local file system or self-hosted Minio, while for production deployments, we recommend using S3.
Text Search Database: An indexed text search database to enable efficient searching and retrieval of data records. We currently support Elasticsearch for this purpose, which allows for full-text search capabilities and is integrated with the Extralit Server. When deployed in initiation, Elasticsearch copies and indexes all of the records data from the Relational Database.
RAG Vector Database: A vector database to store the document content and perform scalable vector similarity searches, supporting RAG uses for LLM extraction. We currently support Weaviate but soon will add support to "Elasticsearch" to consolidate the dependencies.

Environment setup¶

Development Environment Setup Guide

This guide covers everything you need to get started, including:

Installing prerequisites
Setting up Docker containers
Configuring your development environment
Running Extralit components locally

Once you have your environment set up, you can return to this guide to learn more about the specific components you want to contribute to.

The Extralit repository¶

The Extralit repository has a monorepo structure, which means that all the components are located in the same repository: extralit/extralit. This repo is divided into the following folders:

argilla/src/extralit/: The FastAPI server project for extraction
argilla/docs/: The documentation project
argilla/src/argilla/: The argilla SDK project
argilla-server/src/argilla_server/: The FastAPI server project for annotation
argilla-frontend/: The Vue.js UI project
examples: Example resources for deployments, scripts and notebooks

How to contribute?

Before starting to develop, we recommend reading our contribution guide to understand the contribution process and the guidelines to follow. Once you have cloned the Extralit repository and checked out to the correct branch, you can start setting up your development environment.

Argilla Directory Structure

Argilla Repository Structure

Argilla Server Directory Structure

Argilla Server Repository Structure

Development workflow¶

How to Create a New Release

If you prefer not to use Codespaces, you can set up your development environment manually using the following approaches.

Set up the Python environment¶

To work on the Extralit Python SDK, you must install the Extralit package on your system.

Create a virtual environment

We recommend creating a dedicated virtual environment for SDK development to prevent conflicts. For this, you can use the manager of your choice, such as venv, micromamba, pyenv, or uv.

From the root of the cloned Extralit repository.

cd extralit

Next, activate your virtual Python environment and make the required installations:

# Install the `pdm` package manager
pip install pdm

# Install extralit in editable mode and the development dependencies
pdm install --dev

To install specific sub-packages with editable mode, you can use the following command:

pip install -e argilla/
# or
pip install -e argilla-server/

Linting and formatting¶

To maintain a consistent code format, install the pre-commit hooks to run before each commit automatically.

pre-commit install
# then
pre-commit run

These commit hooks will automated linting and formatting checks

Write clear commit messages¶

Commit message format

When writing commit messages, follow this structure:

short one line title

Longer description of what the change does (if the title isn't enough).

An explanation of why the change is being made.

Perhaps a discussion of context and/or alternatives that were
considered.

This format helps document the code, keeps the commit history clean, and makes it easier to understand changes. Tools like GitLens will display these messages directly on code lines, improving collaboration.

Running tests¶

Running tests at the end of every development cycle is indispensable to ensure no breaking changes. GH Actions Workflows automatically run the tests on every commit and PR, but you can also run them locally.

# Run all tests
pdm run tests

# Run specific tests
pytest tests/integration
pytest tests/unit

Running linting, formatting, and tests

You can run all the checks at once by using the following command:

    pdm run all

Set up the documentation¶

Documentation is essential to provide users with a comprehensive guide about Extralit.

From main or develop?

If you are updating, improving, or fixing the current documentation without a code change, work on the main branch. For new features or bug fixes that require documentation, use the develop branch.

To contribute to the documentation and generate it locally, ensure you installed the development dependencies as shown in the "Set up the Python environment" section, and run the following command to create the development server with mkdocs:

mkdocs serve

Documentation guidelines¶

As mentioned, we use mkdocs to build the documentation. You can write the documentation in markdown format, and it will automatically be converted to HTML. In addition, you can include elements such as tables, tabs, images, and others, as shown in this guide. We recommend following these guidelines:

Use clear and concise language: Ensure the documentation is easy to understand for all users by using straightforward language and including meaningful examples. Images are not easy to maintain, so use them only when necessary and place them in the appropriate folder within the docs/assets/images directory.
Verify code snippets: Double-check that all code snippets are correct and runnable.
Review spelling and grammar: Check the spelling and grammar of the documentation.
Update the table of contents: If you add a new page, include it in the relevant index.md or the mkdocs.yml file.

Contribute with a tutorial

You can also contribute a tutorial (.ipynb) to the "Community" section. We recommend aligning the tutorial with the structure of the existing tutorials. For an example, check this tutorial.

Set up the databases¶

Extralit uses a PostgreSQL database to store all application data. Understanding the database schema is essential for developers working on backend components or making changes that affect data storage.

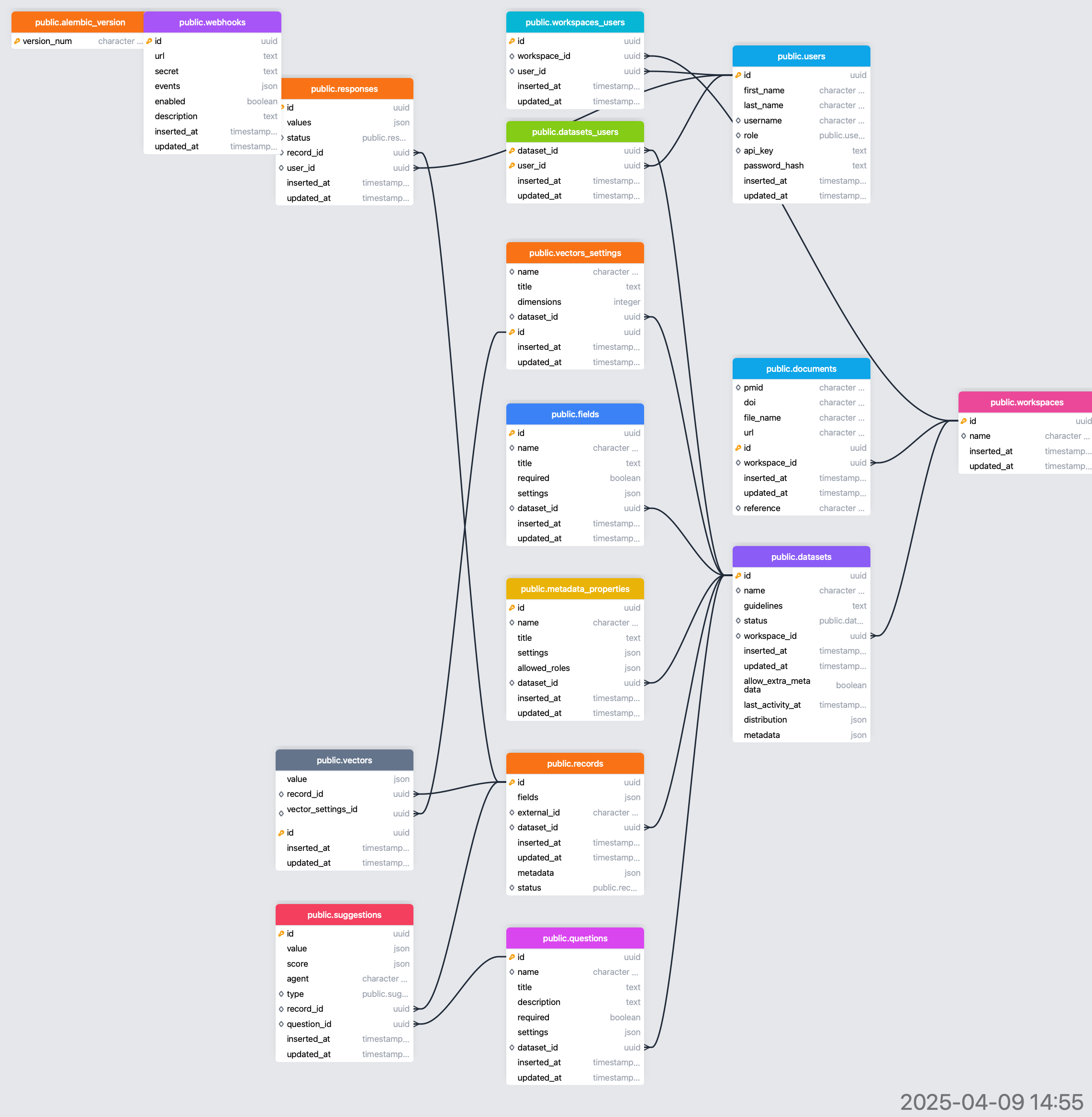

Database Schema

Working with Database Revisions¶

When making changes to the database schema, you need to create database revisions using Alembic. This ensures database migrations are tracked and applied consistently across different environments.

Creating a New Revision¶

Make your changes to the SQLAlchemy models
Generate a new revision file:

cd argilla-server
PYTHONPATH=. alembic revision --autogenerate -m "Brief description of the change"

Review the generated revision file in argilla-server/migrations/versions/
Test the migration:

# Apply the migration
PYTHONPATH=. alembic upgrade head

# Rollback if needed
PYTHONPATH=. alembic downgrade -1

Applying Migrations¶

To apply all pending migrations:

PYTHONPATH=. alembic upgrade head

To check the current database version:

PYTHONPATH=. alembic current

Guidelines for Database Changes¶

Always create migrations for schema changes
Test migrations in both directions (upgrade and downgrade)
Keep migrations backward compatible when possible
Document complex migrations with comments

Production Databases

Be extremely cautious when applying migrations to production databases. Always backup your database before applying migrations and test thoroughly in staging environments first.

Contributing to the CLI¶

The Command Line Interface (CLI) is an important part of Extralit that enables users to interact with the platform from their terminal. Here's how to contribute to the CLI:

CLI Structure¶

The CLI code is located in argilla/src/argilla/cli with this organization:

cli/
├── app.py                # Main entry point
├── command_modules/      # Individual commands
    ├── datasets/         # Dataset operations
    ├── documents/        # Document operations
    ├── extraction/       # Extraction pipeline
    ├── files/            # File operations
    └── ...               # Other commands

The CLI uses Typer for creating the command-line interface.

Adding a New CLI Command¶

Create a new module in the appropriate directory:

# src/argilla/cli/mycommand/__main__.py
import typer
from argilla.cli.callback import init_callback
from argilla.cli.rich import get_argilla_themed_panel
from rich.console import Console

app = typer.Typer(help="My command description")

@app.callback()
def callback(ctx: typer.Context):
    """Callback for my command."""
    init_callback()

@app.command(name="subcommand")
def my_subcommand(param: str = typer.Argument(..., help="Parameter description")):
    """Subcommand docstring - appears in help."""
    # Command implementation
    Console().print(f"Executed with parameter: {param}")

Register your command in app.py:

from argilla.cli import mycommand
app.add_typer(mycommand.app, name="mycommand")

Write tests for your command in tests/unit/cli/test_mycommand.py
Update the CLI documentation with examples

CLI Design Principles¶

Create commands that fit into existing workflows
Follow consistent naming and structure patterns
Provide clear help text for all commands and options, e.g. use the print_rich_table function to print tables in a rich format
Use sensible defaults to minimize required input
Follow the Unix philosophy: commands should do one thing well

Troubleshooting¶

Persistent Volume & Storage Classes¶

When using Kubernetes, persistent volume issues can occur: - PVs might not be available when services are deployed, especially in kind clusters - PVC might bind to incorrect PVs depending on creation order - For persistent storage issues, check the uncategorized resource in Tilt - Sometimes clearing /tmp/kind-volumes/ and restarting the cluster is needed

Deployment Issues¶

Common deployment problems: - elasticsearch: Can fail on restart due to data-shard issues - main-db Postgres: May fail to remount volumes after redeployment due to password changes

For support, join the Extralit Slack channel.
